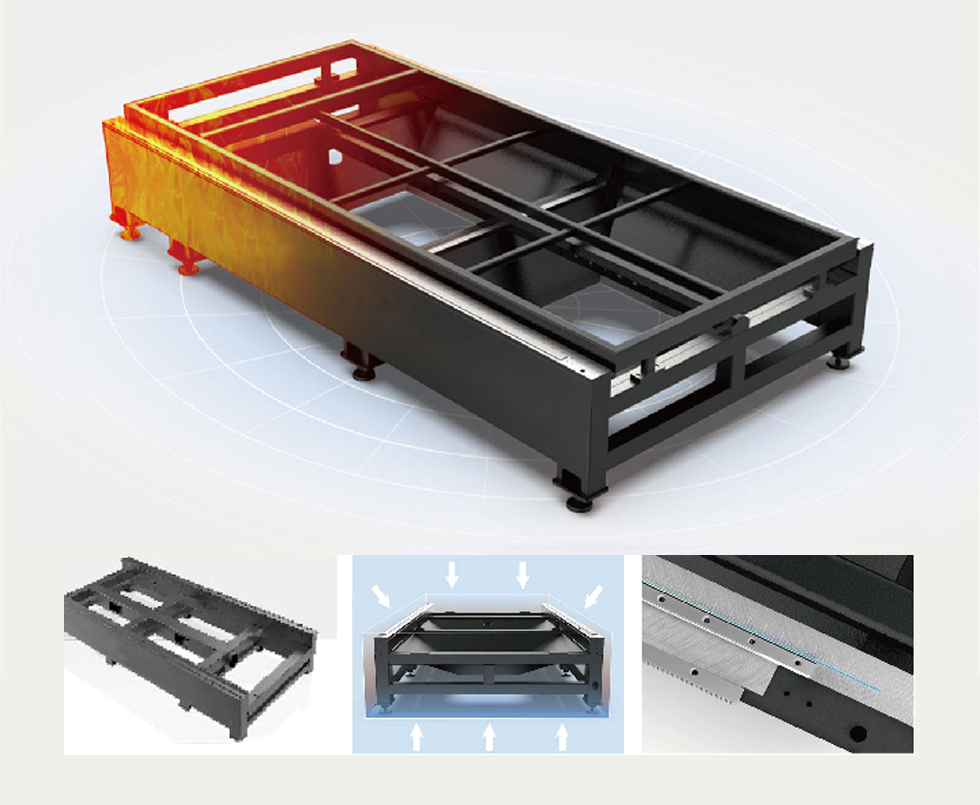

The Segmented Rectangular Tube Welded Bed
The bed's internal structure is an aviation metal honeycomb structure welded together with a number of rectangular tubes. Stiffeners are placed inside the tubes to strengthen the bed's strength and tensile strength. as well as the resistance and stability of the guide rail, preventing deformation
Lifetime Service
It assures that the machine will perform accurately for a long period and will not distort over its lifetime
Higher Precision
High tensile strength, stability, and strength, allowing for 20 years of use without distortion

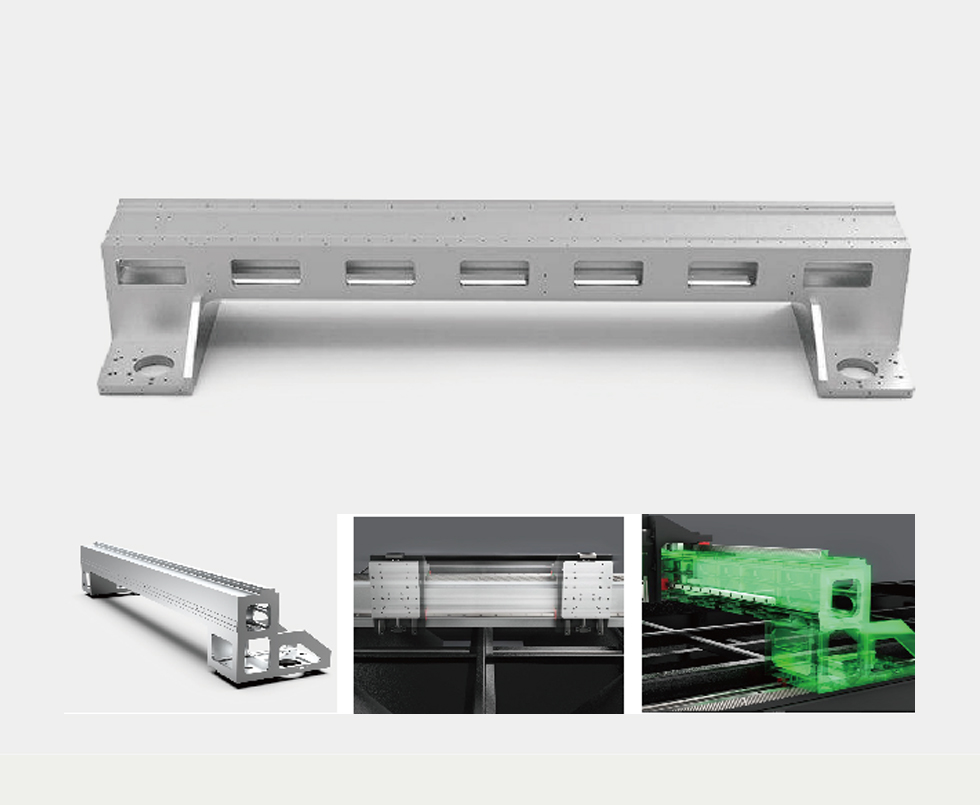

Monolithic cast aluminum beam
No deformation, light weight, high strength Light cross beams allow equipment to operate at a faster rate, boosting processing efficiency and quality
High Speed
The light crossbeam allows the machine to move at a faster rate and enhance cutting efficiency
More Efficient
The aerospace industry's aluminum profile beam ensures that the equipment has efficient dynamic performance, considerably increasing processing efficiency while maintaining processing quality.
TubePro designed for professional tube cutting. supports production of tube and profile of various shape. It works with TubesT nesting software seamlessly to realize technique setting, advanced toolpath generation and nesting for standard and special production need
TubesT
3D Tube Nesting Software
TubesT is a 3D fube nesting software designed for CypTube/TubePro laser cutting system. From parts drawing and modification, full type compensation, strategic nesting to report generation,using Tubest will meet and exceed your production needs.
TubesT-Life
3D Tube Nesting Software
TubesT-Lite is a free software to generate toolpath for FsCUT tube cutting system. It's designed for CypTube/TubePro can import part from external igs file. draw the part of standard shape and array-nest the part on the tube.
High and low exchange table, saving loading and unloading.

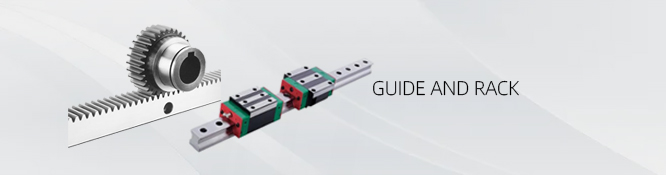

Dual rail and rac, world famous imported brand, precision linear guides and imported gear racks
Professional cutting laser source. With high-quality beam quality, high light conversion efficiency, the light emitting mode is more conducive to achieving a good and stable cutting effect with high quality.

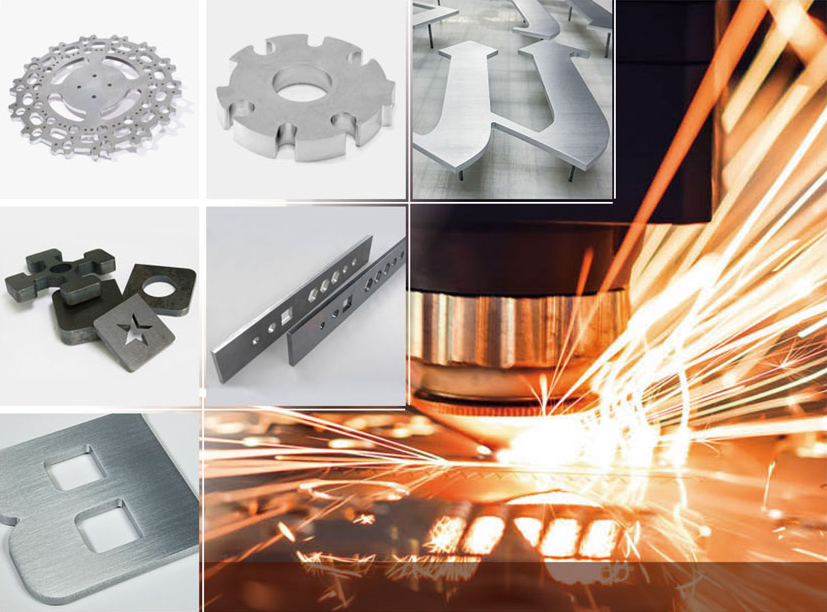

Applicable materials: Stainless steel pipes, carbon steel pipes, aluminum alloy pipes, copper pipes, titanium alloy pipes,steel pipes, alloy steel pipes, nickel alloy pipes.
Applications: Metal processing industry, automobile manufacturing industry, furniture manufacturing industry,construction industry, pipeline engineering, shipbuilding industry, medical device manufacturing industry,petrochemical industry, food processing industry.

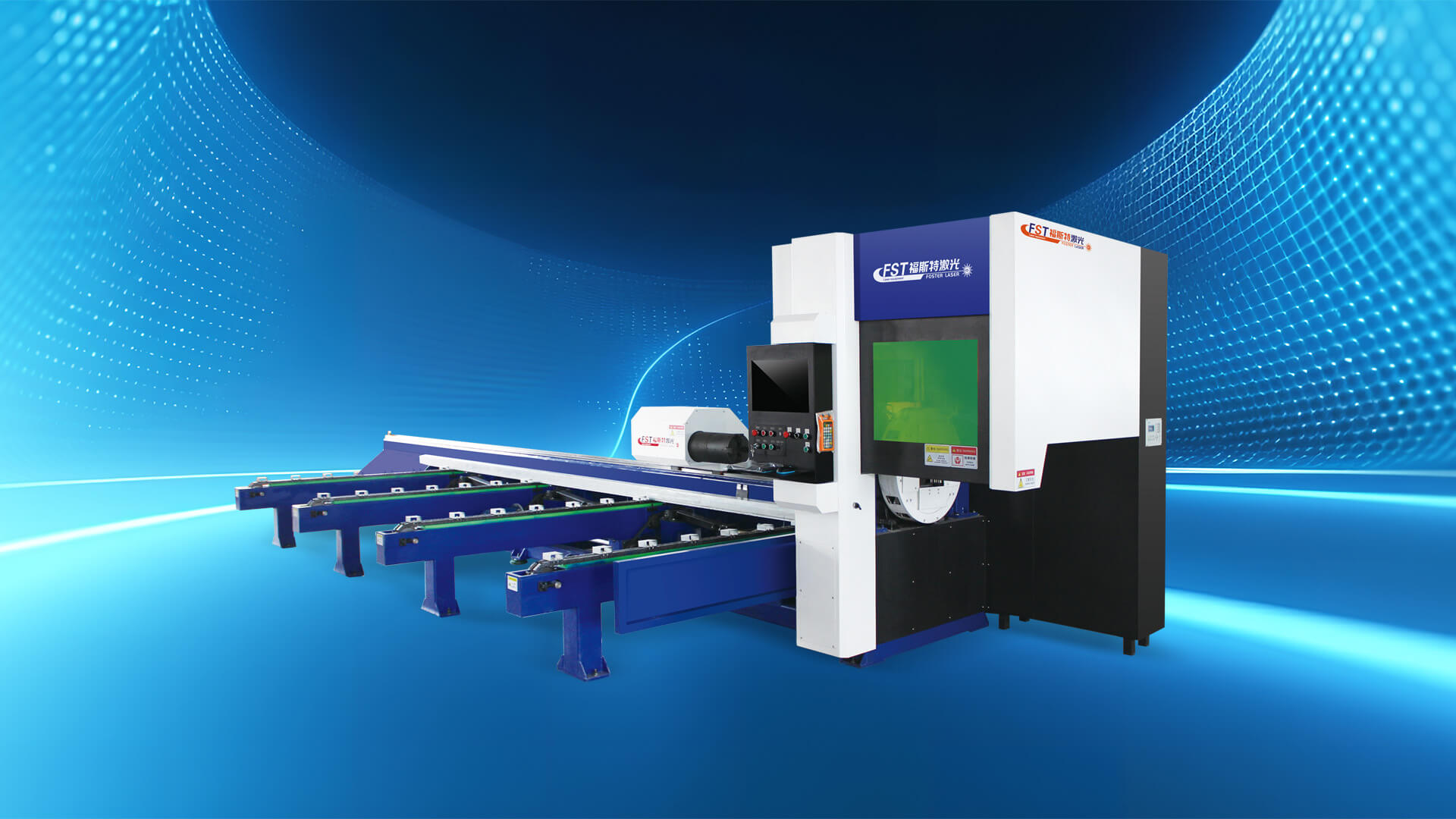

| Model | FST-6022AT |
| Laser Power | 1500W/2000W/3000W/4000W/6000W (optional) |
| Working Area | 6000mm* φ10-220mm |
| Cooling Method | Water cooling protection |
| Positioning Accuracy | ±0.03mm |
| Maximum Acceleration | 1G |
| Repeatability | ±0.02mm |
| Cutting Materials | Round tube, square tube |
| Laser Source Brand | Raycus/MAX/IPG/RECI |
| Max Movement Speed | 100m/min |
| Power Parameters | 380V/50Hz |
