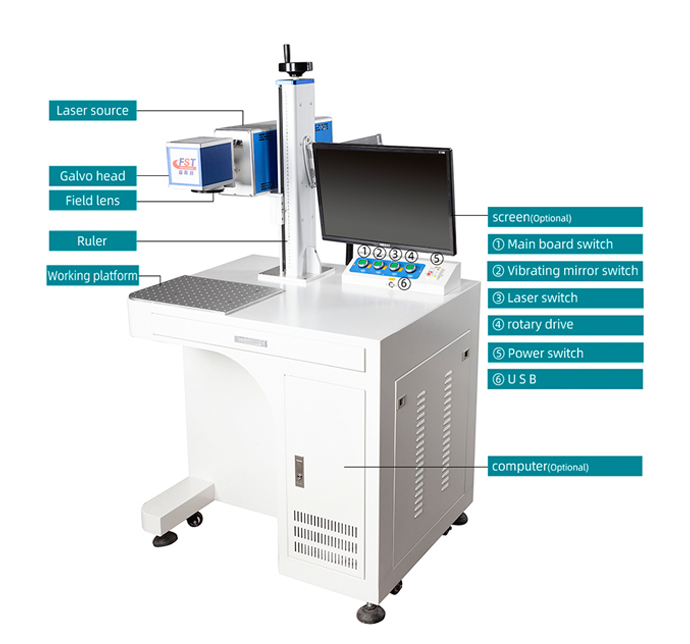

Can install double work platform, both blade work table and honeycomb work table, can use to do both cutting and engraving.
Ezcad genuine products, user-friendly interface, functional diversity, high stability, high precision. Each board has its own number to ensure that it can be inquired in the original factory. Refuse to fake .
When two red light coincides best focus. Double red light pointer help customers make focus quickly and easily.
Can protect eyes from laser wave 1064nm, let the operate more safe.(optional)
It can control the laser on and off. Make the operate more convenicent.
We us famous brand to provides precision laser. Standard 110x110mm marking area. Optional 150x150mm, 200x200mm, 300x300mm etc.
The machine can satisfy the demands of cutting and engraving large quantity of clothing fabrics, leather, wood, acrylic, paper and other industries.
| Products Name | CO2 Laser Marking Machine |
| Types & Model | FST Ezcad-Series |
| Laser Source Brand | DAVI |
| Laser Power | 20W, 30W ,50W, 60W, 100W |
| Laser Wavelength | 10.6um |
| Max Mar Speed | 7000mm/s |
| Control Card | Original EZCAD from JCZ brand |
| Filed Lens Brans | wavelength |
| Galvo Head | Sino Galvo |
| Marking Area | 110*110mm to 300*300mm |
| Operation System | Win XP / 7 / 8 / 10 (32 bit , 64 bit) |
| Power Supply | AC110V /220V +10% ,50HZ/60HZ |
| Operation Environment | Working temperature: 0°-40° |
