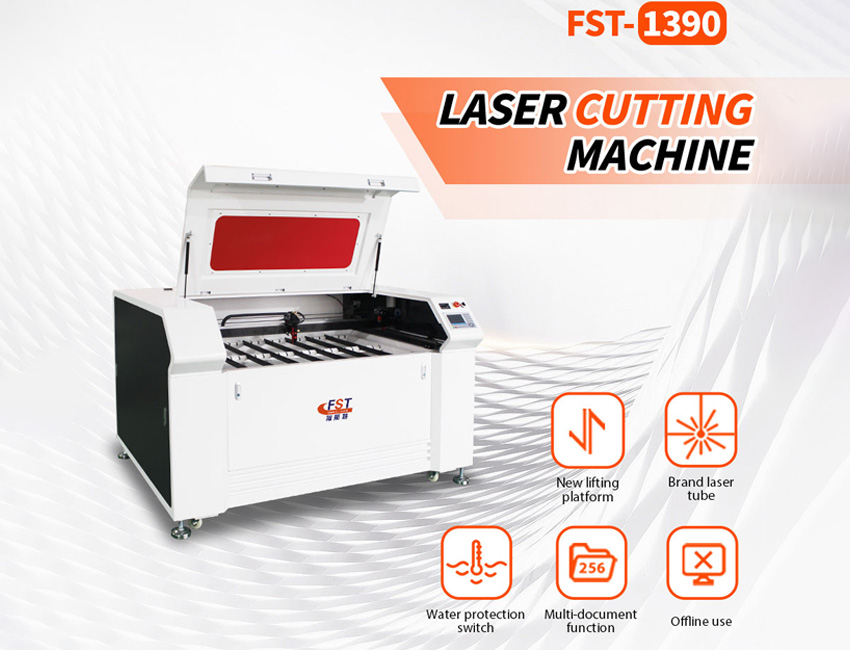

New lifting platform, Brand laser tube, Upgrade the tri-body design, Water portection switch, Muti-document function.
High precision retractable laser head, easy to adjust focal length, equipped with red light positioning system, accurate positioning, reduce material loss. Auto-blowing to protect laser head.
High operating accuracy,high temperature resistance, can bear the high temperature generated by high-speed operation,and low noise.
Foster laser CO2 Laser Engraving Machine with different working area,laser power or working table, which application is engraving and cutting on acrylic, wood, fabric, cloth, leather, rubber plate, PVC, paper and other kinds of non metal materials.1390 laser cutting machine are widely used in clothing, shoes,luggage, computer embroidery clipping, model, electronic appliances, toys, furniture, advertising decoration, packaging and printing, paper products, handicrafts, Household appliances, laser processing and other industries.
Long life, stable power. Install of reinforcement settings, the laser tube is not easy to collide and cause damage when moving the machine.(EFR, RECI, CDWG, YONGLI, JOY. Optional)
Standard RDWorksV8 software: It support 15 different languages, include: Chinese, English, Japanese,French, German,Portuguese, Polish,Spanish, Russian, Korean, Vietnamese, Indonesian, Italian, Turkrish,Arabic. It can compatible with many other software, like Coreldraw, Photoshop, AutoCAD, TAJIMA,etc You can use these software to make designs, then import to Rdworks to cut or engrave.
Interface: USB2.0 interface support connect to computer by USB cable, it also support offline work.
Adopt advanced laser engraving and cutting control system : Ruida RDC6442 / 6445 control system, the control pannal support different language include Chinese, English, French, Pyccko, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian.
XY axis apply imported square rails. Ensures stable operation, high precision and long life
It allows you to process materials of various sizes, can be lifted in Z direction (up-and-down) to get more working space.
Imported USA II-VI Lens, suitable for vanous environments, and has high precision and high speed.
Application Materials: Acrylic, leather, wood, rubber, double-color board, MDF, plywood,bamboo, paper, cardboard, marble, granite, stone, glass, fabric,textile, coated metal, painted metal, anodized aluminum etc.
Application Industry: Advertisement, Garments sampling, Small width tailoring, leather industry, shoemaking, decoration, furniture, packing and printing, model industry, craftwork and gift, etc.
| Model | FST-1390 |
| Worktable | Honeycomb / blade |
| Eneraving area | 1300*900mm |
| Laser Power | 60W/80W/100W/150W/300W |
| Cutting Depth (Acrylic) | 0-30mm (acrylic) |
| Power Supply | 220V(or110V)+/-10% 50Hz |
| Water protecting sensor and alarm | Yes |
| Operating Temperature | 0-45℃ |
| Graphic Format Supported | PLT/DXF/BMP/JPG/GIF/PGN/TIF |
| Operation System | Windows XP/7/10 |
| Software | RDworks/LaserCAD/AotuCAD |
| Laser Tube | Sealed CO2 glass laser tube |
