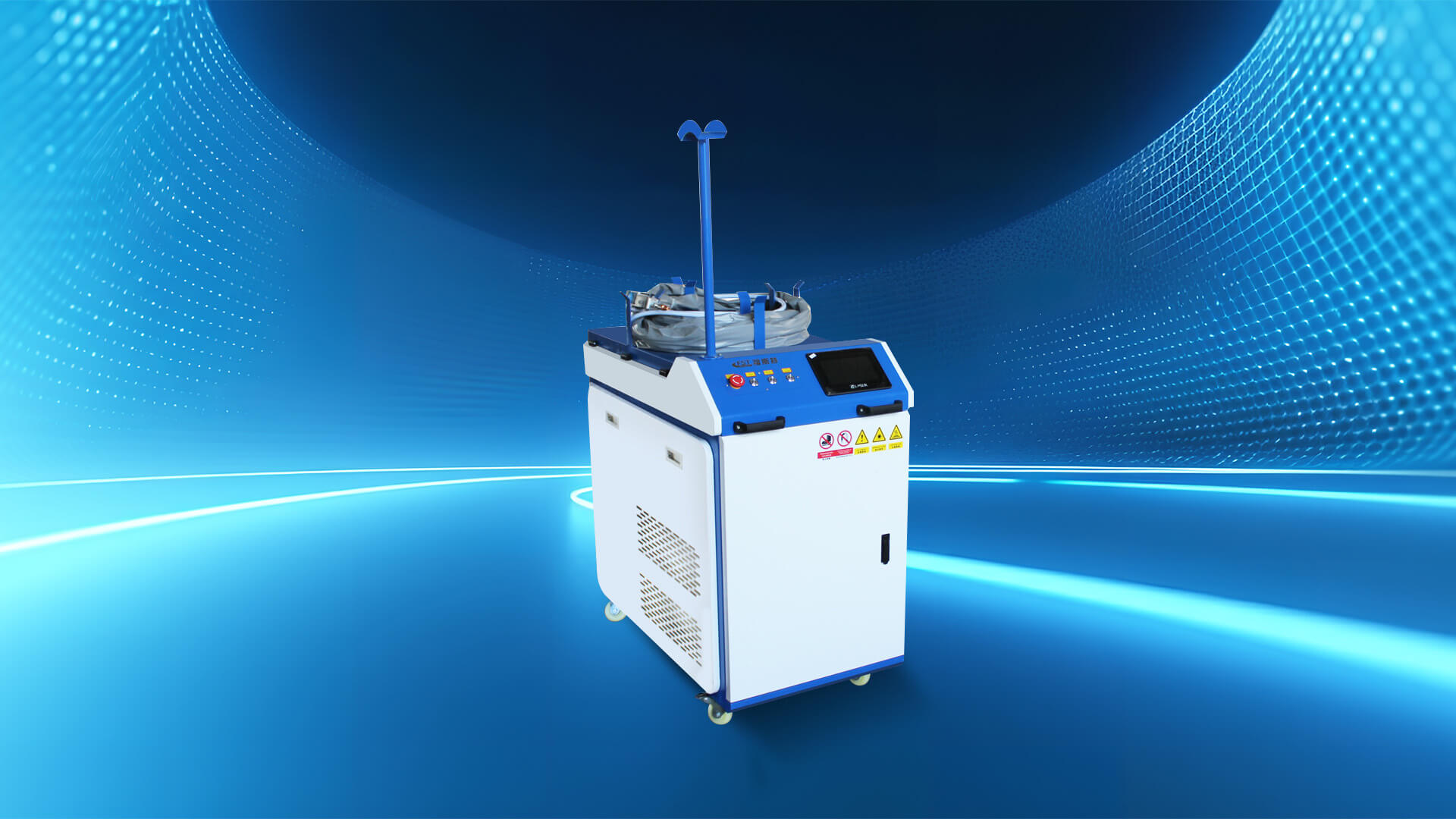

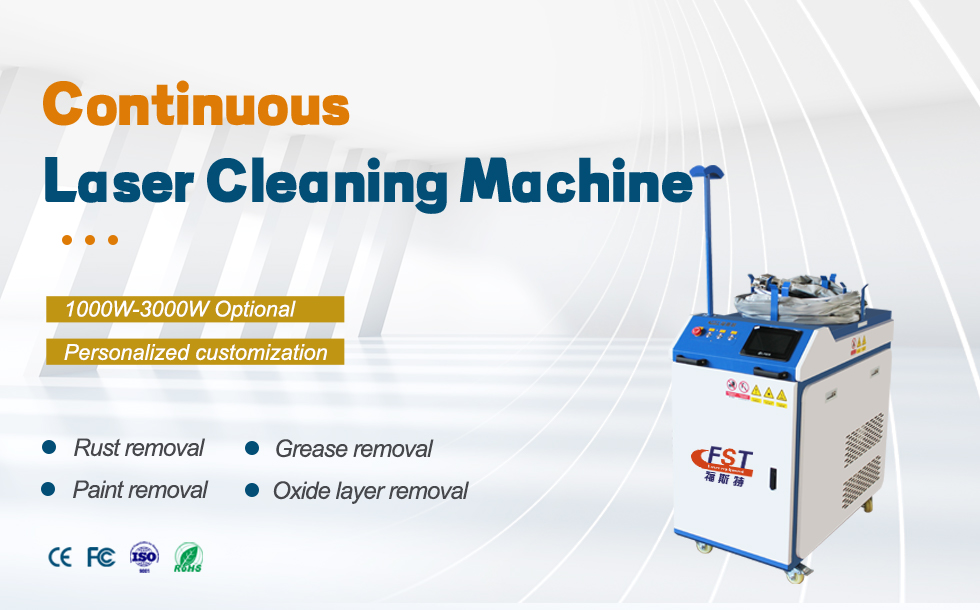

The laser cleaning machine is a cutting-edge device that harnesses the power of laser technology to perform surface cleaning and remove coatings. Its versatile applications span across a multitude of industries, including industrial manufacturing, automotive maintenance, cultural heritage preservation, and beyond
Non-Contact Cleaning: Laser cleaning operates without physical contact, preventing wear and tear during the cleaning process. This feature is especially advantageous for maintaining high precision on the object's surface
High Precision and Control:
Laser beam focus is meticulously controlled, enabling the targeted removal of contaminants from specific areas while leaving surrounding regions unaffected
Chemical-Free Process: Laser cleaning is a purely physical method, eliminating the need for chemical solvents or cleaning agents. This not only avoids chemical pollution but also sidesteps concerns related to waste disposal
Energy-Efficiency and Environmental Friendliness, Versatility Across Materials etc.
Surface Rust Removal
Dust And Debris Removal From Stone Statues' Surfaces
Surface Paint Stripping And Removal
Surface Oil, Stain, And Dirt Cleaning
Surface Coating And Layer Removal
Welding Surface/Spray Surface Pre-Treatment
Residue Cleaning From Rubber Molds
Laser cleaning typically consumes less energy compared to traditional methods, and it generates minimal wastewater or exhaust gases, aligning with eco-friendly practices.
Laser cleaning's applications span various materials, showcasing remarkable adaptability.

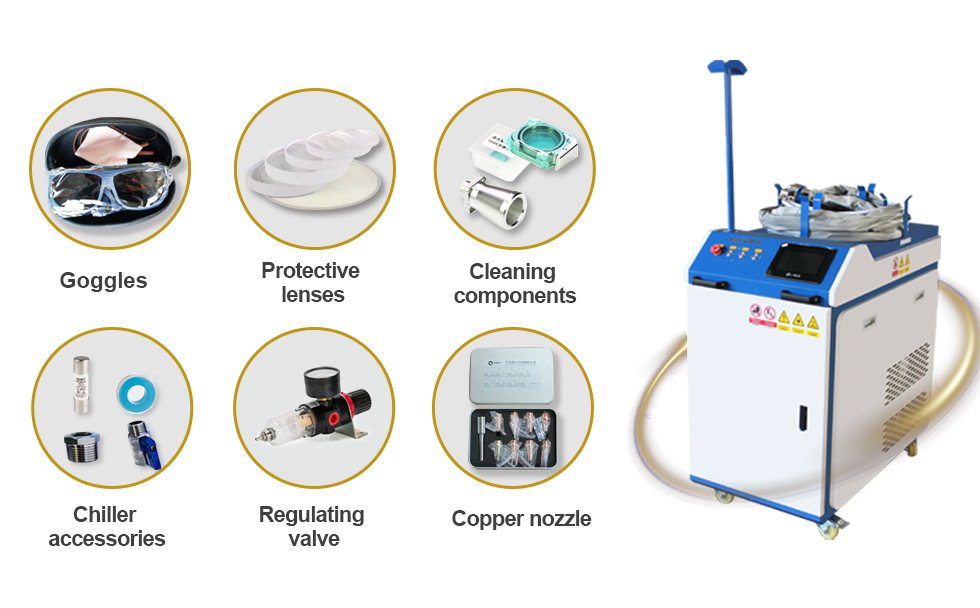

Support Relfar, Super chaoqiang, Qilin Au3tech different brands ofcleaning head.
Famous brands such as Raycus , Max , IPG , JPT , Reci etcThe most important part of laser cleaning machineWorking life is 100,000 hours
Hanli and S&A teyu brand can be selected .Protect the laser source and prolong the life of the laser source
Remove rust, paint, oxide laver, Clean the weld seam, Mold cleaning, Stone cleaning, Remove oil, Tire cleaning.
RELFAR :
F600 Focusing lens Standard configuration 200mm , Upgradeable to 300mm
CHAOQIANG :
22C 400focusing lens : 150mm , 600focusing lens : 225mm , 800focusing lens : 300mm
QILN :
150mmx 150mm
| Laser power | 1000W 1500W 2000W 3000W |
| Laser Running Mode | Continuous Mode |
| Frequency | 10-20KHz |
| Fiber Cable Length | 8m |
| Cooling Type | Water Cooling |
| Scanning Width | Max 300mm |
| Voltage | Single phase 220V, 50/60Hz Three phaser 380V, 50/60Hz |
| Total Consumption | 5.5KW 8KW 13.5KW 18KW |
| Rust(20um) | 20m³/h 30m³/h 40m³/h 60m³/h |
| Corrosion(100um) | 5m³/h 8m³/h 10m³/h 15m³/h |
| Paint(120um) | 8m³/h 12m³/h 16m³/h 24m³/h |
