JPT Mopa Split Laser marking machine




Simple Detail display

Optional rotary axis for different cylindrical Optional rotary axis can be used to mark on different cylindrical, spherical objects.The stepper motor is used for digital control,and the speed can be automatically controlled by computer,which is more convenient,simple,safe and stable.
FIELD LENS We use famous brand to provides precision laser. Standard 110 x 110mm marking area. Optional 150x150mm,200 x200mm,300x300mm etc.
GALVO HEAD Famous brand Sino-galvo, high speed galvanometer scan adopting SCANLAB technology, digital signal, high precision and Speed.



Main features

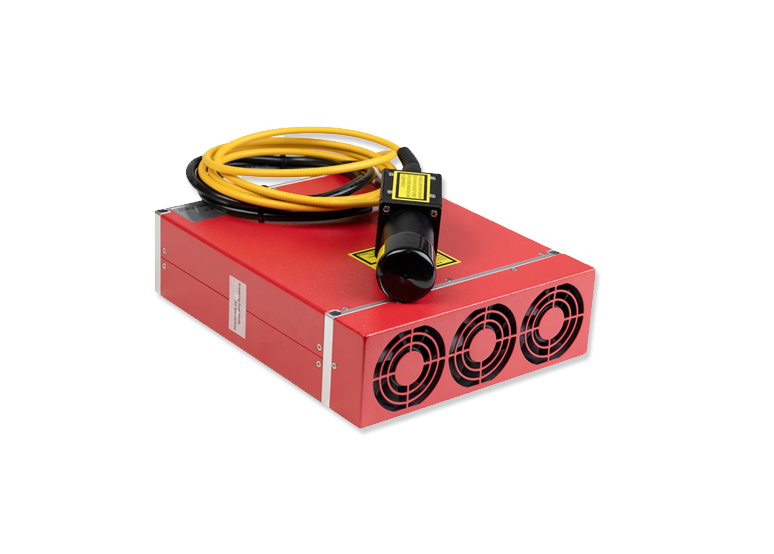

No Consumables, Long lifespan Maintenance Free:The Fiber laser source has super long lifespan of over 100,000 hours withoutany maintenance. No need to spare any extra consumer parts at all . Suppose you will work for 8 hours per day, 5 days a week, the fiber laser could work properly for you for more than 8-10 years without extra costs except electricity.

Multi-functional:It could Mark/Code/Engrave un-removable serials Numbers, batch Numbers, Expiry info, Best Before date, logo & any Characters that you want. It could also mark QR code.

Simple Operation, Easy to use: Our patent software supports almost all common formats, The operator does not have to understand programming, Just simply set a few parameters and click start.

High Speed Laser Marking:The laser marking speed is very fast, 3-5 times than the traditional marking machine.

Control Board and Software

Ezcad genuine products, user-friendly interface, functional diversity, high stability, high precision. Each board has its own number to ensure that it can be inquired in the original factory. Refuse to fake .
Powerful editing function.
Friendly interface.
Easy to use.
Support Microsoft Windows XP, VISTA, Win7, Win10 system.
Support ai, dxf, dst,plt, bmp, jpg, gif, tga, png, tif and other file formats.



More Info

Double red lighr pointer: When two red light coincides best focus. Double red light pointer help customers make focus quickly and easily.
Red light preview: Adopt Red light preview to show the laser path since laser beam is invisible.
Marking ruler and rotating handle: Enables customers to precisely position for fast engraving.Adapting To Different Products Height
Working platform: Alumina working platform and imported precise beeline device. Flexibility mesa have multiple screw holes, convenient and custom installation, special fixture industry platform.

Advantage

Field Lens

We us famous brand to provides precision laser. Standard 110x110mm marking area. Optional 150x150mm, 200x200mm, 300x300mm etc.

Field Lens

Foot Switch

It can control the laser on and off. Make the operate more convenicent.

Foot Switch

Goggles

Can protect eyes from laser wave 1064nm, let the operate more safe.(optional)

Goggles

Application Industry

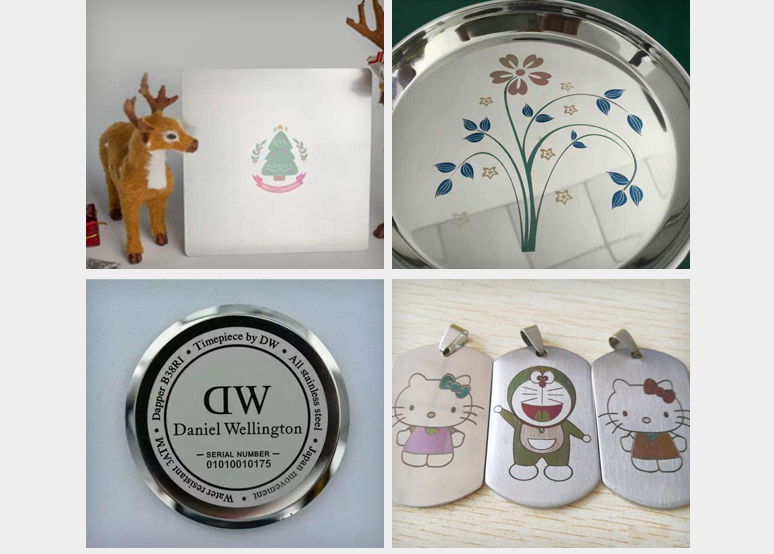

Fiber laser marking machine can work with most metal marking applictions, such as Gold, Silver, Stainless Steel, Brass, Aluminium, Steel, Iron etc. And it can also mark on many non-metal materials, such as ABS, Nylon, PES, PVC, Makrolon.

Technical Parameters

Model FST-split fiber marking machine
Laser Type Mopa Fiber Laser
Working area 110*110/150*150/200*200/300*300(mm)
Laser power 20W/30W/50W
Laser wavelength 1060nm
Beam quality m²<1.5
Application metal and nonmetal
Cooling Mode Air Cooling
Supported graphic formats AI,BMP,DST,DWG,DXF,DXP,LAS,PLT
Controlling software EZCAD
Working temperature 15°C-45°C
Optional parts Rotary Device, Lift platform, other customized Automation


PDF

140x140

Click the download button, you can get all machine parameters.
