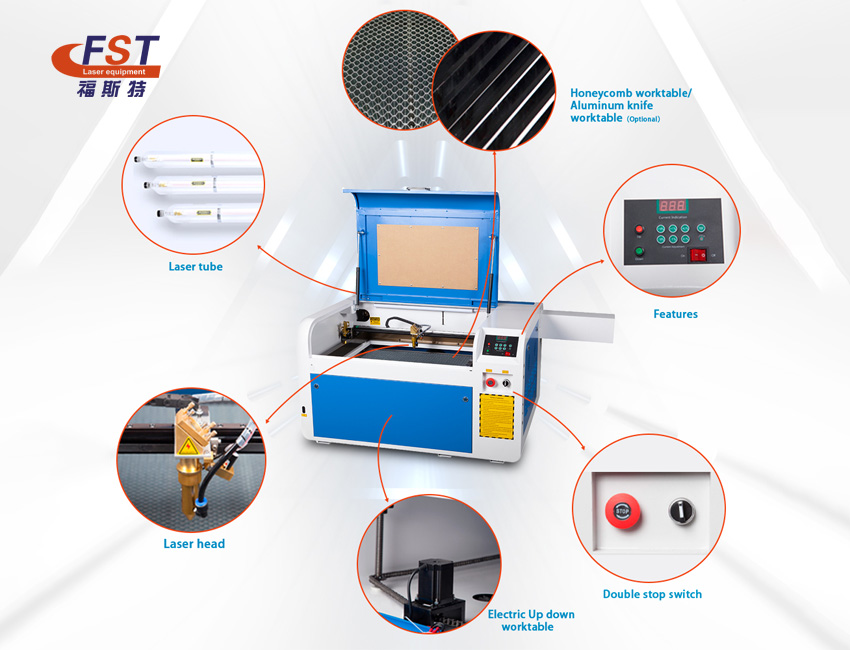

Intuitive Control Panel, Set Speed, power and more controls directly from the laser
Water Cooling and Protection System
Red light positioning
Emergency Stop Button
Larger Size, 400' 600mm working area
The lifting platform is electric control
Drag-and-chain transmission line.
Laser focal length: 5CM

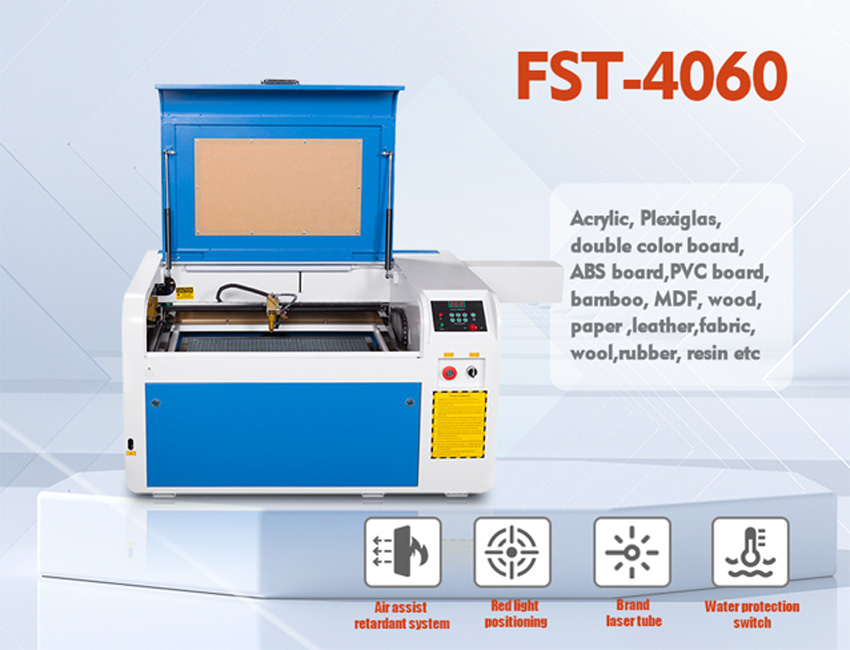

Foster laser CO2 Laser Engraving Machine with different working area,laser power or working table, which application is engraving and cutting on acrylic, wood, fabric, cloth, leather, rubber plate, PVC, paper and other kinds of non metal materials.4060 laser cutting machine are widely used in Advertisement, Garments sampling, Small width tailoring, leather industry, shoe making, decoration, furniture, packing and printing, model industry, craft work and gift and other industries.
Long life, stable power. Install of reinforcement settings, the laser tube is not easy to collide and cause damage when moving the machine.(EFR, RECI, CDWG, YONGLI, JOY. Optional)
Standard RDWorksV8 software: It support 15 different languages, include: Chinese, English, Japanese,French, German,Portuguese, Polish,Spanish, Russian, Korean, Vietnamese, Indonesian, Italian, Turkrish,Arabic. It can compatible with many other software, like Coreldraw, Photoshop, AutoCAD, TAJIMA,etc You can use these software to make designs, then import to Rdworks to cut or engrave.
Interface: USB2.0 interface support connect to computer by USB cable, it also support offline work.
Adopt advanced laser engraving and cutting control system : Ruida RDC6442 / 6445 control system, the control pannal support different language include Chinese, English, French, Pyccko, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian.
Tiwan Hiwin Linear square guide rails, higher precision.
Ruida Controller system, support online/offline working, English language system, adjustable cutting speed and power.
Imported USA II-VI Lens, suitable for various environments, and has high precision and high speed.
Application Materials: Acrylic, Plexiglas,double color board, ABS board,PVC board, bamboo, MDF, wood,paper ,leather,fabric, wool,rubber, resin etc
Application Industry: Advertisement, Garments sampling, Small width tailoring, leather industry, shoe making, decoration, furniture, packing and printing, model industry, craft work and gift, etc.
| Model | FST 6040 laser engraving cutting machine |
| Working area | 600*400mm |
| Laser type | sealed co2 glass laser tube |
| Laser power | 40W/50W/60W/80W/100W |
| Data transfer interface | USB2.0 |
| Working voltage | 220v±10% 50hz 110v±10%60hz |
| Min shaping character | character:2*2mm letter:1*1mm |
| Software | RdworksV8/ CorelDraw/AutoCAD |
| Supported graphic formats | BMP PCX TGA TIF PLT CDR |
| Working temperature | 0-45°C |
| Working humidity | 5%-90% |
| Optional parts | Rotary axis,water chiller 3000/5000/5200. |
