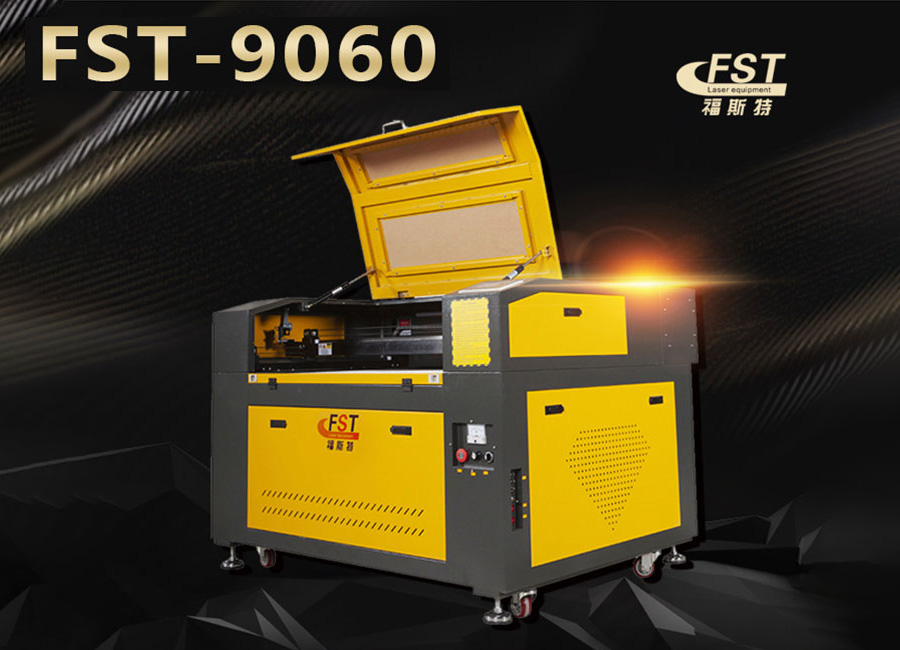

High Precision and Quality 900*600mm Co2 Laser Engraving Machine




Top sales in many countries

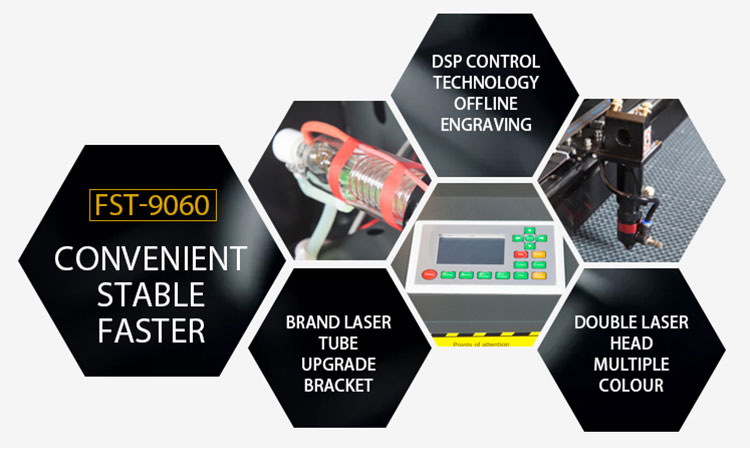

New lifting platform, Brand laser tube, Upgrade the tri-body design, Water portection switch, Muti-document function.

High precision retractable laser head, easy to adjust focal length, equipped with red light positioning system, accurate positioning, reduce material loss. Auto-blowing to protect laser head.

High operating accuracy,high temperature resistance, can bear the high temperature generated by high-speed operation,and low noise.



Features

Aluminum knife or honeycomb table. Two kinds of of tables are available for different material.

CO2 Glass sealed laser tube China famous brand (EFR, Reci), good beam mode stability, long service time.

Imported lens and mirrors. High transmittance, good focusing, reflection effect.

Ruida Controller system, support online/offline working, English language system, adjustable cutting speed and power.

High accuracy stepper motors and drivers. Belt transmission.

Tiwan Hiwin Linear square guide rails, higher precision.

Closed Co2 Laser Tube

Foster laser CO2 Laser Engraving Machine with different working area, laser power or working table, which application is engraving and cutting on acrylic, wood, fabric, cloth, leather,d rubber plate, PVC, paper and other kinds of non metal materials.1060 laser cutting machine are widely used in clothing, shoes, luggage, computer embroidery clipping, model, electronic appliances, toys, furniture, advertising decoration, packaging and printing, paper products, handicrafts. Household appliances, laser processing and other industries.

Long life, stable power. Install of reinforcement settings, the laser tube is not easy to collide and cause damage when moving the machine.(EFR, RECI, CDWG, YONGLI, JOY. Optional)



Wifi Control, Mobile App and Handle are optional

The RD6445 system is the latest generation of laser engraving/cutting control system developed by Ruida Technology. This control system has better hardware stability and better resistance to high voltage and electrostatic interference.The control panel supports Chinese, English, French, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian and other languages.

Interface: USB2.0 interface support connect to computer by USB cable, it also support offline work.

Adopt advanced laser engraving and cutting control system : Ruida RDC6442 / 6445 control system, the control pannal support different language include Chinese, English, French, Pyccko, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian.

Advantage

Three Lines Linear Guide

XY axis apply imported square rails. Ensures stable operation, high precision and long life

Three Lines Linear Guide

PLATFORM LIFTING

It allows you to process materials of various sizes, can be lifted in Z direction (up-and-down) to get more working space.

PLATFORM LIFTING

USA II-VI LENS

Imported USA II-VI Lens, suitable for vanous environments, and has high precision and high speed.

USA II-VI LENS

Applications and Applicable materials

Application Materials: Acrylic, leather, wood, rubber, double-color board, MDF, plywood,bamboo, paper, cardboard, marble, granite, stone, glass, fabric,textile, coated metal, painted metal, anodized aluminum etc.

Application Industry: Arts and crafts, advertising, decoration, wood working, leather manufacturing, packaging, printing, mould making, furniture, clothing and brand making etc.

Technical Parameters

Model FST-9060
Worktable Honeycomb
Eneraving area 600*900mm
Laser Power 60W/80W/100W
Up and down work table 300mm
Cutting Depth (Acrylic) 0-15mm (acrylic)
Operating Temperature 0-45℃
Power Supply 220V(or110V)+/-10% 50Hz
Graphic Format Supported PLT/DXF/BMP/JPG/GIF/PGN/TI
Minimum Shaping Character 1 X 1mm
Software Ruida
Laser Tube Sealed CO2 glass laser tube
