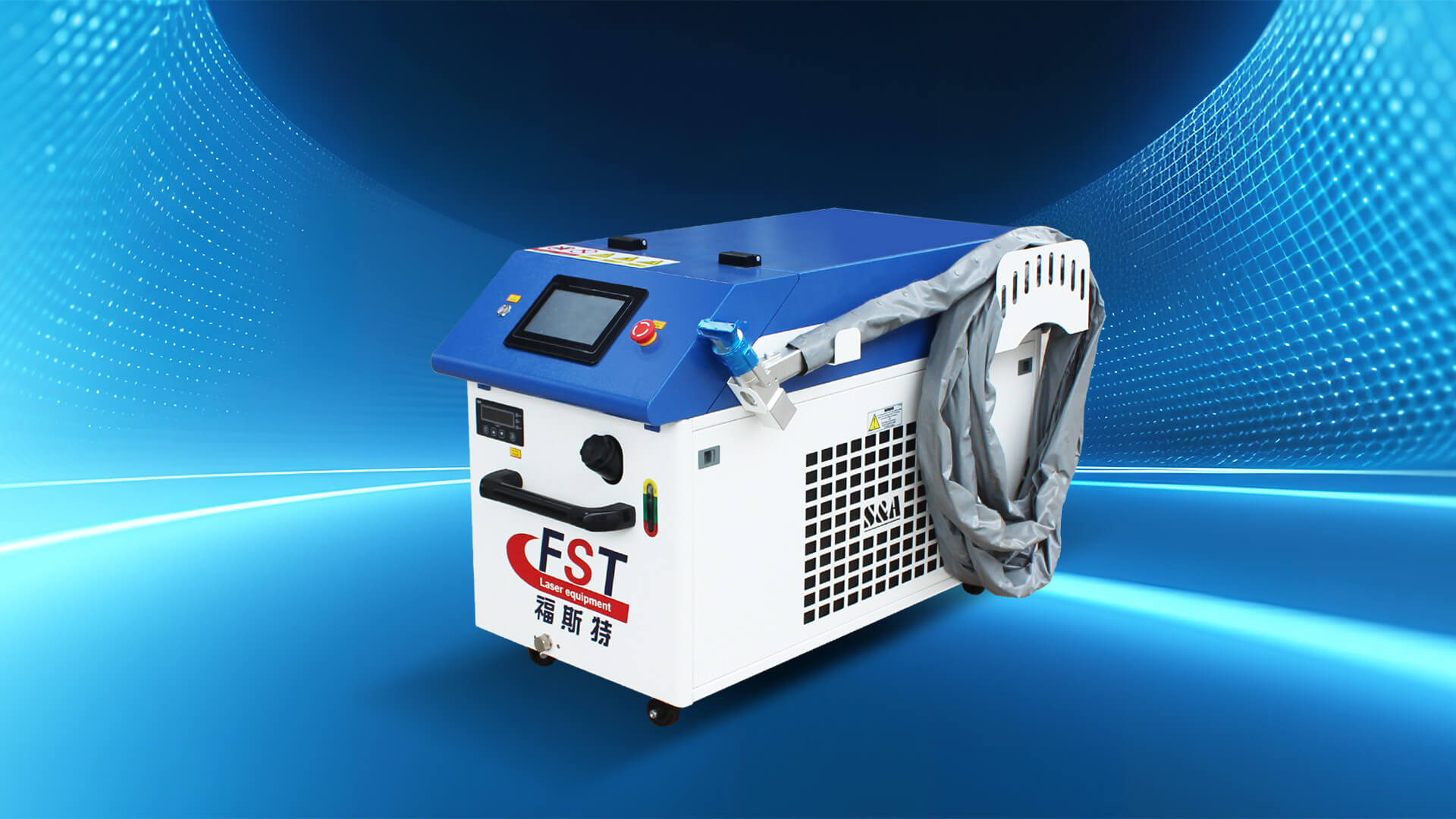

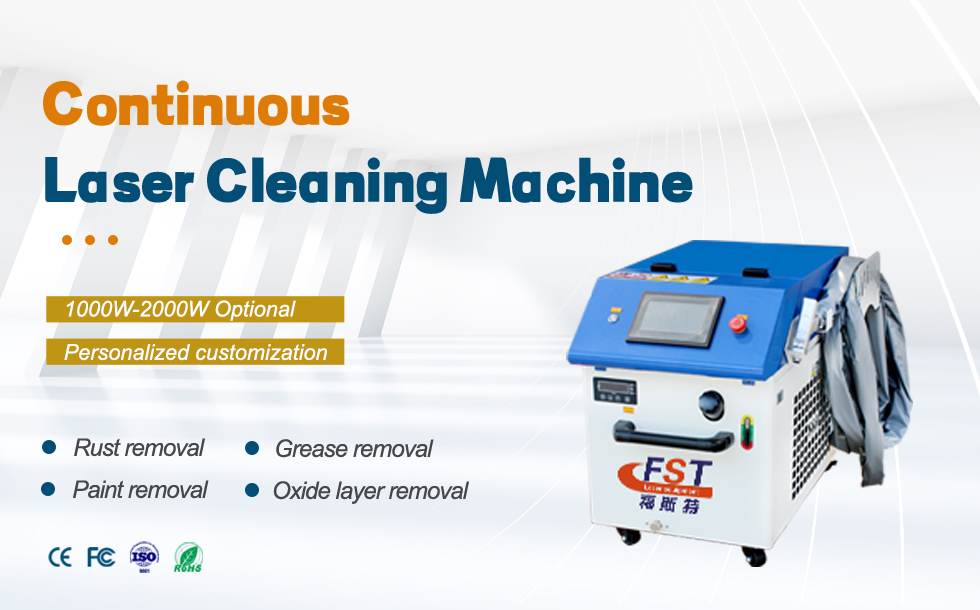

Handheld Fiber Laser Cleaning Machine




Rust / Grease / Paint / Oxide laver removal

The laser cleaning machine is a cutting-edge device that harnesses the power of laser technology to perform surface cleaning and remove coatings. Its versatile applications span across a multitude of industries, including industrial manufacturing, automotive maintenance, cultural heritage preservation, and beyond



Eight advantages of the product

Fast cleaning
Long focal length non-contact cleaning
Easy to operate
Remote cleaning
Customized automation on demand
Precise controlled cleaning
Large surface cleaning
Environmental protection and no pollution

Operation and Product features

Non-Contact Cleaning: Laser cleaning operates without physical contact, preventing wear and tear during the cleaning process. This feature is especially advantageous for maintaining high precision on the object's surface
High Precision and Control: Laser beam focus is meticulously controlled, enabling the targeted removal of contaminants from specific areas while leaving surrounding regions unaffected
Chemical-Free Process: Laser cleaning is a purely physical method, eliminating the need for chemical solvents or cleaning agents. This not only avoids chemical pollution but also sidesteps concerns related to waste disposal
Energy-Efficiency and Environmental Friendliness, Versatility Across Materials etc.



Application

Surface Rust Removal
Dust And Debris Removal From Stone Statues' Surfaces
Surface Paint Stripping And Removal
Surface Oil, Stain, And Dirt Cleaning
Surface Coating And Layer Removal
Welding Surface/Spray Surface Pre-Treatment
Residue Cleaning From Rubber Molds

Laser cleaning typically consumes less energy compared to traditional methods, and it generates minimal wastewater or exhaust gases, aligning with eco-friendly practices.
Laser cleaning's applications span various materials, showcasing remarkable adaptability.

Advantage

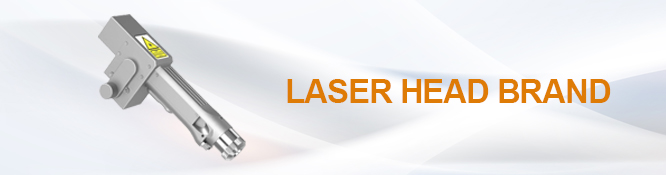

Cleaning Laser Head

FWH20-C11A: The maximum cleaning width can reach 200mm.

Cleaning Laser Head

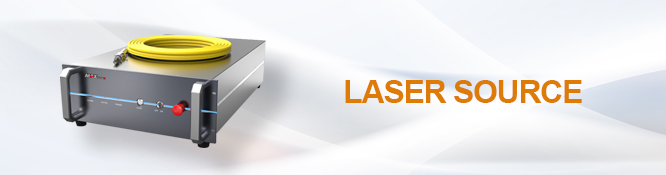

Laser Source

Internationally renowned laser source (Max/Raycus/JPT/IPG), stable laser power, long life.good welding effect, beautiful welding seam.

Laser Source

Water chiller

When the machine is working, cool the laser source with water.

Water chiller

Product Cleaning Effect Display and Cleaning range

Remove rust, paint, oxide laver, Clean the weld seam, Mold cleaning, Stone cleaning, Remove oil, Tire cleaning.

RELFAR :
F600 Focusing lens Standard configuration 200mm , Upgradeable to 300mm
CHAOQIANG :
22C 400focusing lens : 150mm , 600focusing lens : 225mm , 800focusing lens : 300mm
QILN :
150mmx 150mm

Technical Parameters

Model Fiber Laser Cleaning Machine
Laser wavelength 1070 ± 20nm
Laser power 1000W / 1500W / 2000W
Laser source Raycus/Max/IPG
Operating mode Continuous/pulse
Length of fiber-optical 10(standard)
Power supply 220V/380V
Cooling method Water Cooling
Red light positioning Support
Intelligent protection Support



PDF

140x140

Click the download button, you can get all machine parameters.
