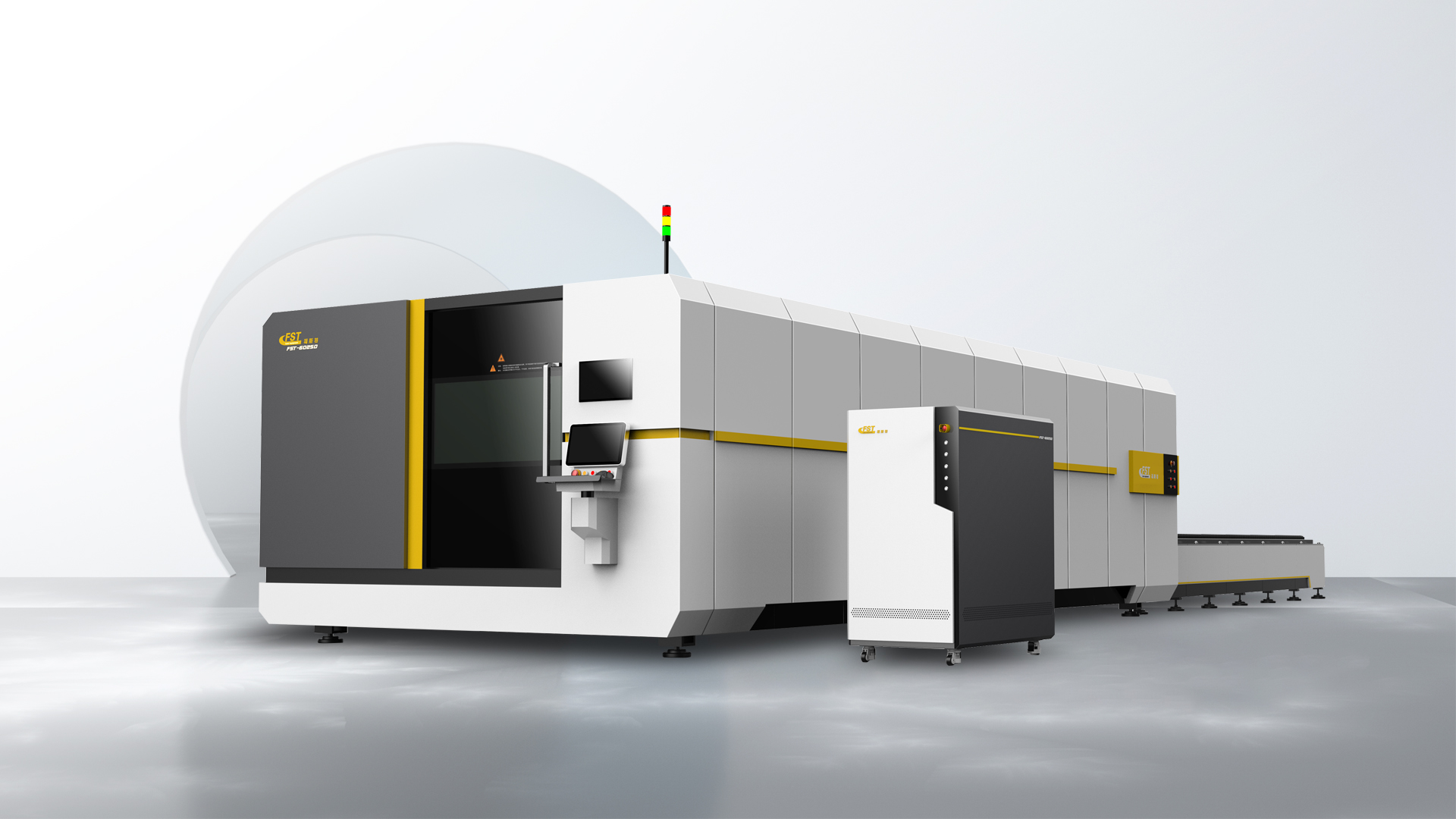

Full Enclosed Fiber laser Cutting Machine




Industrial Machine bed

The Segmented Rectangular Tube Welded Bed
The bed's internal structure is an aviation metal honeycomb structure welded together with a number of rectangular tubes. Stiffeners are placed inside the tubes to strengthen the bed's strength and tensile strength. as well as the resistance and stability of the guide rail, preventing deformation

Lifetime Service
It assures that the machine will perform accurately for a long period and will not distort over its lifetime

Higher Precision
High tensile strength, stability, and strength, allowing for 20 years of use without distortion



Laser Cutting head

RAYTOOLS / WSX / PRECITEC (optional)

Fast Speed Cutting, Improve Efficiency

Brand New Double-beam Bed Structure

Friendess Control System

Full Enclosure Design, Safety And Environmental Protection

3rd Generation Aviation Aluminum Gantry

Monolithic cast aluminum beam
No deformation, light weight, high strength Light cross beams allow equipment to operate at a faster rate, boosting processing efficiency and quality

High Speed
The light crossbeam allows the machine to move at a faster rate and enhance cutting efficiency

More Efficient
The aerospace industry's aluminum profile beam ensures that the equipment has efficient dynamic performance, considerably increasing processing efficiency while maintaining processing quality.



Friendess Control System

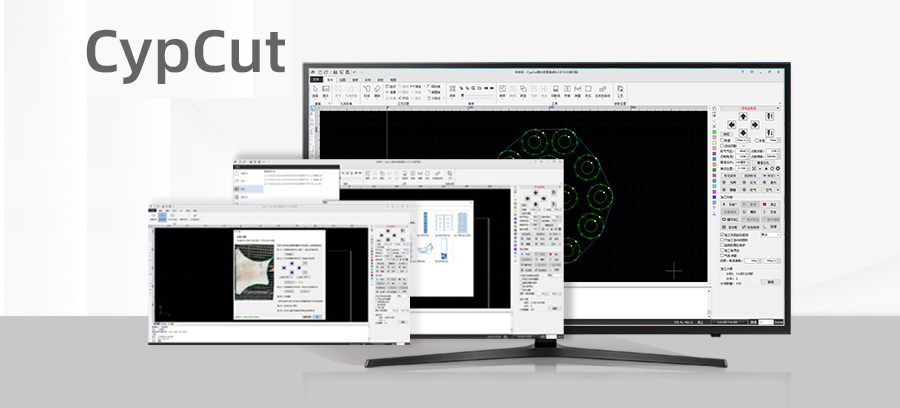

CypCut

CypCut sheet cutting software is an in-depth design for fiber laser cutting industry. It simplifies complex CNC machine operation and integrates CAD. Nest and CAM modules in one. From drawing, nesting to workpiece cutting all can be finished by a few clicks.
1. Auto Optimize Imported Drawing
2. Graphical Cutting Technique Setting etc.

Advantage

Dual Platform Interactive

High and low exchange table, saving loading and unloading.

Dual Platform Interactive

Original Gear Guide

Dual rail and rac, world famous imported brand, precision linear guides and imported gear racks

Original Gear Guide

High-definition intelligent monitoring system

The large-enclosed optical fiber cutting machine adopts a fully automatic feeding system, with a fully-enclosed safety design,Allowing the entire equipment to achieve stable cutting under high-power and high-speed operation, endowing the equipment with a higher standard product positioning.

High-definition intelligent monitoring system

Applications and Applicable materials

Applications: Widely used in Metal processing industry, kitchen appliances, sheet metal chassis cabinets, mechanical equipment,electronic equipment, lighting hardware, advertising signs, automotive industry, auto parts, fitness equipment and other metal products, sheet metal cutting processing and other industries.

Applicable materials: Carbon steel, stainless steel, galvanized sheet, aluminum plate, brass copper, iron and its alloys most of the metal plate can be cut.

Technical Parameters

Model FST-6025PH(1530/1560/2060)
Laser Power 1000W 1500W 2000W 3000W 6000W 12000W 30000W(optional)
Working Area 2500*6000 (mm)
Cooling Method Water cooling protection
Positioning Accuracy ±0.1mm
Maximum Acceleration 1G-1.5G
Working Voltage 220V/380V
Laser Source Raycus/MAX/IPG/RECI
Transmission System Dual Rack & Pinion Type
Operating Temperature 0-45℃
Maximum Empty Line Speed 110m/min


PDF

140x140

Click the download button, you can get all machine parameters.
