FST-9060 High Performance CO2 Laser Cutting Machine




FST-9060 co2 laser cutting machine

Fosterlaser CO2 Laser Engraving Machine with different working area,laser power or working table, which application is engraving and cutting on acrylic, wood, fabric, cloth, leather, rubber plate, PVC, paper and other kinds of non metal materials.9060 laser cutting machine are widely used in clothing, shoes,luggage, computer embroidery clipping, model, electronic appliances, toys, furniture, advertising decoration, packaging and printing, paper products, handicrafts, Household appliances, laser processing and other industries.



MAIN BOARD
1. Adopt advanced laser engraving andcutting control system: Ruida RDC6445 control system,the control pannal support different language include Chinese, English, French, Pyccko, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian.

2. Standard RDWorksV8 software: It support 15 different languages, include: Chinese, English, Japanese, French,German,Portuguese, Polish,Spanish, Russian, Korean, Vietnamese,Turkrish,Arabic. lt can compatible with many other software, like Coreldraw, Photoshop,AutoCAD, TAJIMA,etc. You can use these software to make designs, then import to Raworks to cut or engrave.

3. RDworks software support files in different format: Al, DXF,PLT,DST,BMP,DSB, EPS, DAT,NC,RDB,GIF,JPG,JPEG,JPE,JFIF,PNG,MNG,ICO,CUR,TIF,TIFF,TGA,PCX, WBMP, WMF,EMF,JBG,J2C,JPC,PGX,RAS,PNM, PGM,PPM,SKA,RAW,

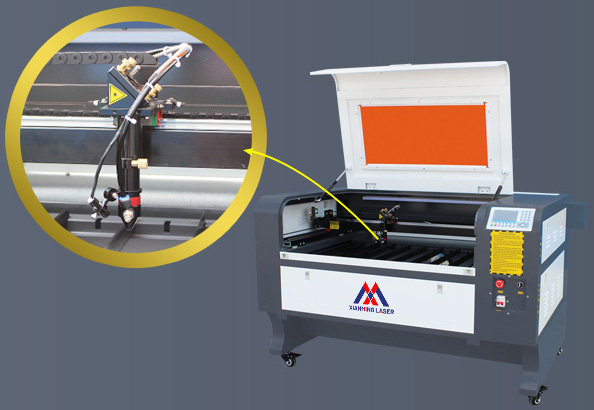

LASER CUTTING HEAD

High precision retractable laser head,easy to adjust focal length, equippedwith red light positioning system, accurate positioning, reduce material loss.

Auto-blowing to protect laserhead and prevent the laser burning

Autofocus (optional)

Laser is invisible, Red laser beam to determine the cut-off point



Selling point

Aluminum knife or honeycomb table. Two kinds of of tables are available for different material.

CO2 Glass sealed laser tube China famous brand (EFR, Reci), good beam mode stability, long service time.

Imported lens and mirrors. High transmittance, good focusing, reflection effect.

Ruida Controller system, support online/offline working, English language system,adjustable cutting speed and power.

High accuracy stepper motors and drivers. Belt transmission.

Advantage

Laser source

Imported USA II-VI Lens, suitable for vanous environments, and has high precision and high speed.

Laser source

PLATFORM LIFTING

It allows you to process materials of various sizes,can be lifted in Z direction (up-and-down) to get more working space.(Choice of chain or belt type)

PLATFORM LIFTING

LINEAR GUIDE

XY axis apply importedsquare rails.Ensures stable operation,high precision and long life.

LINEAR GUIDE

Applications and Applicable materials

9060 laser cutting machine are widely used in clothing, shoes,luggage, computer embroidery clipping, model, electronic appliances, toys, furniture, advertising decoration, packaging and printing, paper products, handicrafts, Household appliances, laser processing and other industries.

Technical Parameters

Model FST-9060
Laser Power 60W 80W 100W 130W 150W 180W 300W
Working Area 900*600mm
Cooling Method Water cooling protection
Engraving Depth 5mm
Laser Tube Sealed CO2 glass laser tube
Worktable Honeycomb or aluminum knife
Cutting Speed 0-5000mm/min
Cutting Depth(Acrylic) 0-30mm(acrylic)
Power Supply 220V(or 110v)+/-10% 50HZ
Operating temperature 0-45℃
Graphic Format Supported PLT/DXF/BMP/JPG/GIF/PGN/TIF


PDF

140x140

Click the download button, you can get all machine parameters.
