Can install double work platform, both blade work table and honeycomb work table, can use to do both cutting and engraving.
Using Yongli laser tube, its photoelectric conversion efficiency is high, the laser output power density is high, the beam is concentrated, and the spot is uniform. The engraving/cutting speed is fast and the engraving line is deep and narrow with high resolution and clear characters. The work life of laser tube is long and the fault rate is low.
Environmental protection without pollution.

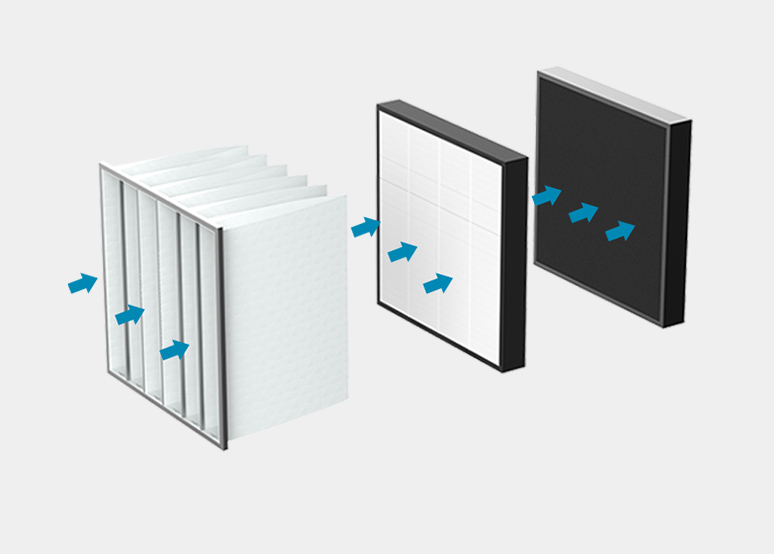

Three-stage filtration.
The first is bag filtration of large particles.
The second IS HEPA filtration of particles larger than that of 0.03um.
The third is activated carbon adsorbs of smoke and dust odour.

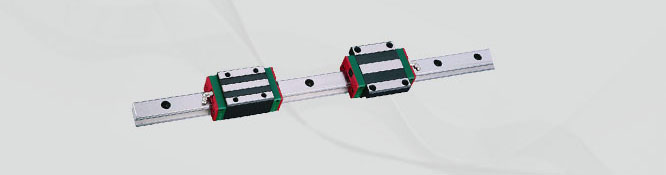

Equipped with Taiwan Hiwin rail guide, with features of high positioning accuracy, strong load bearing and good dynamic performance.
Adopted Taiwan Hiwin linear guide rail, high positioning accuracy, scroll guide, reduce wear to maintain accuracy for a longer time.
Convenient- Engineers can remotely control computers and machines, adjust parameters and solve problems. Efficiency- One PC can control several machines.
The machine can satisfy the demands of cutting and engraving large quantity of clothing fabrics, leather, wood, acrylic, paper and other industries.
| Laser - Type | Fiber Laser Cutting Machine |
| Laser power | 1000W 1500W 2000W 3000W(optional) |
| Cutting Area | 1500mm x3000mm |
| Whole Machine Size | 3000* 1600* 990mm |
| Cutting Speed | 0 -24000mm/min |
| Resetting Positioning Accuracy | ±0.1mm |
| Working Voltage | AC 110-220V ±10%,50 60Hz |
| Gross Power | <1,500W |
| Operating Temperature | 0-45℃ |
| Operating Humidity | 5-95% |
