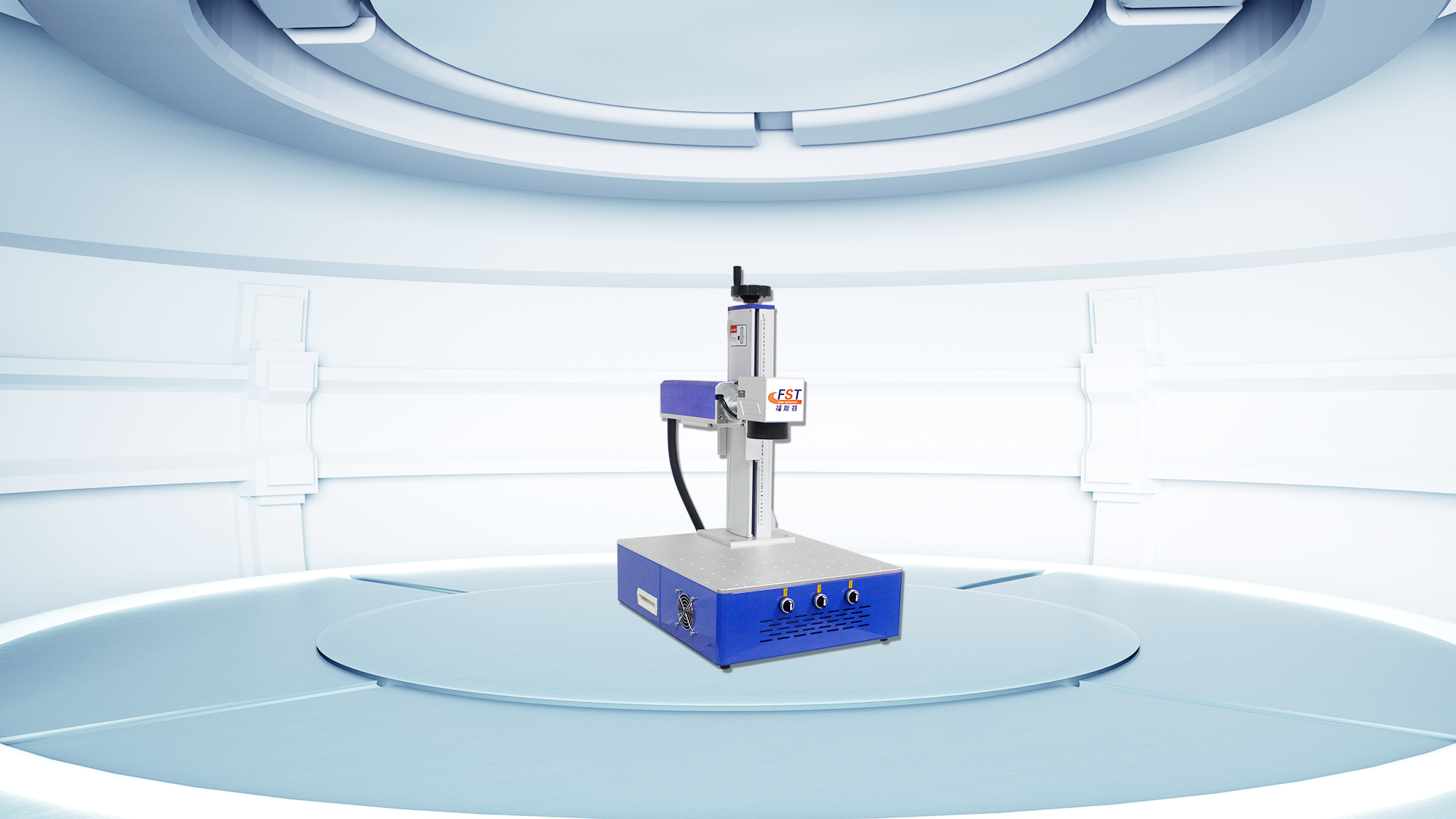

Desktop fiber Laser marking machine




No Consumables, Long lifespan Maintenance Free

The Fiber laser source has super long lifespan of over 100,000 hours withoutany maintenance. No need to spare any extra consumer parts at all . Suppose you will work for 8 hours per day, 5 days a week, the fiber laser could work properly for you for more than 8-10 years without extra costs except electricity.

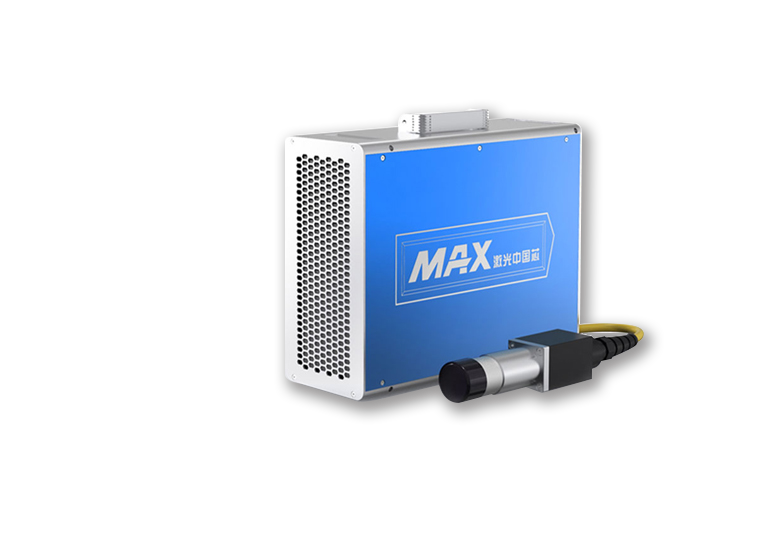

LASER SOURCE

We use Chinese famousbrand Max Laser source

Optional : IPG / JPT / Raycus Laser source

CONTROL BOARD

Ezcad genuine products, user-friendly interface, functional diversity, high stability, high precision. Each board has its own number to ensure that it can be inquired in the original factory. Refuse to fake .



DOUBLE RED LIGHT POIATER

When two red light coincides best focus. Double red light pointer help customers make focus quickly and easily.

Advantage

Field Lens

We us famous brand to provides precision laser. Standard 110x110mm marking area. Optional 150x150mm, 200x200mm, 300x300mm etc.

Field Lens

Foot Switch

It can control the laser on and off. Make the operate more convenicent.

Foot Switch

Goggles

Can protect eyes from laser wave 1064nm, let the operate more safe.(optional)

Goggles

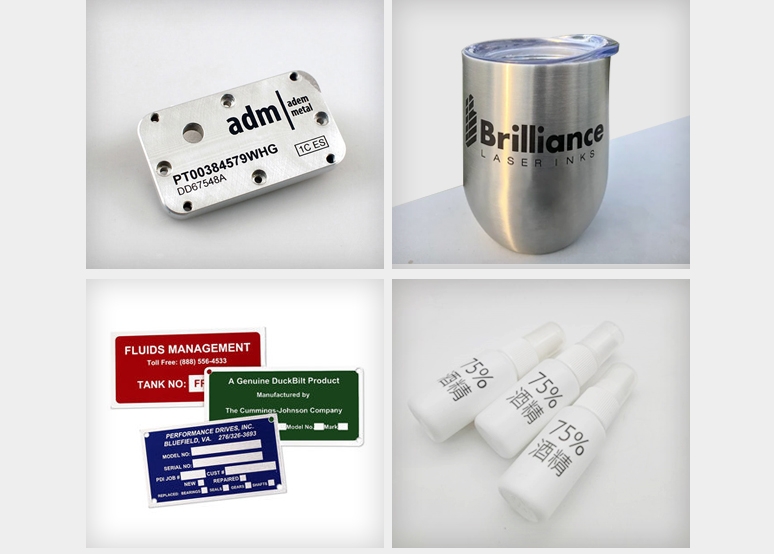

Application Industry

Fiber laser marking machine can work with most metal marking applictions, such as Gold, Silver, Stainless Steel, Brass, Aluminium, Steel, Iron etc. And it can also mark on many non-metal materials, such as ABS, Nylon, PES, PVC, Makrolon.

Technical Parameters

Model Desktop laser marking machine
Laser Type Fiber Laser
Working area 110*110/150*150/200*200/300*300(mm)
Laser power 20W/30W/50W/80W/100W
Laser wavelength 1064nm
Laser Power Supply MAX/RAYCUS/JPT
Application Metal and some nonmetal
Communication Interface USB
Working voltage 220V or 110V (±10%)
Cooling Mode Air Cooling
Supported graphic formats AI,BMP,DST,DWG,DXF,DXP,LAS,PLT
Controlling software EZCAD
Optional parts Rotary Device, 2D/3D Work Table , other customized Automation
Warranty 2 year


PDF

140x140

Click the download button, you can get all machine parameters.
