You can choose one or two. It depends on the needs of the customer.

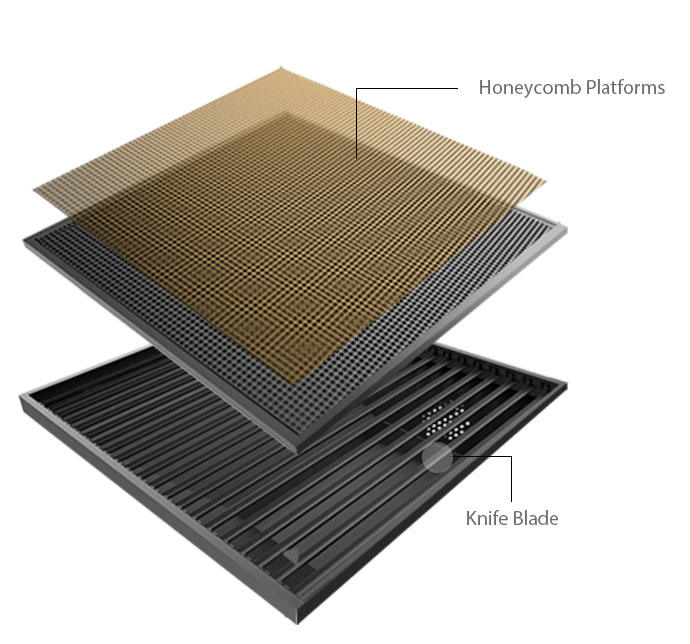

Aluminum knife or honeycomb table.
Two kinds of of tablesare available for different material.
Long life, stable power. Install of reinforcement settings, the laser tube is not easy to collide and cause damage when moving the machine.(EFR, RECI, CDWG, YONGLI, JOY. Optional)
Adopt advanced laser engraving and cutting control system : Ruida RDC6442 / 6445 control system, the control pannal support different language include Chinese, English, French, Pyccko, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian.
Tiwan Hiwin Linear square guide rails, higher precision.
Ruida Controller system, support online/offline working, English language system, adjustable cutting speed and power.
Open style, the front and back of the machine is open which is possible for longer material, break through the limit of the workpiece length.
Arts and crafts, advertising, decoration, wood working, leather manufacturing, packaging, printing, mould making, furniture, clothing andbrand making etc. Applicable materials: Acrylic, leather, wood, rubber, double-color board, MDF, plywood, bamboo, paper, cardboard, marble, granite, stone, glass, fabric, textile, coated metal, painted metal, anodised aluminum etc.

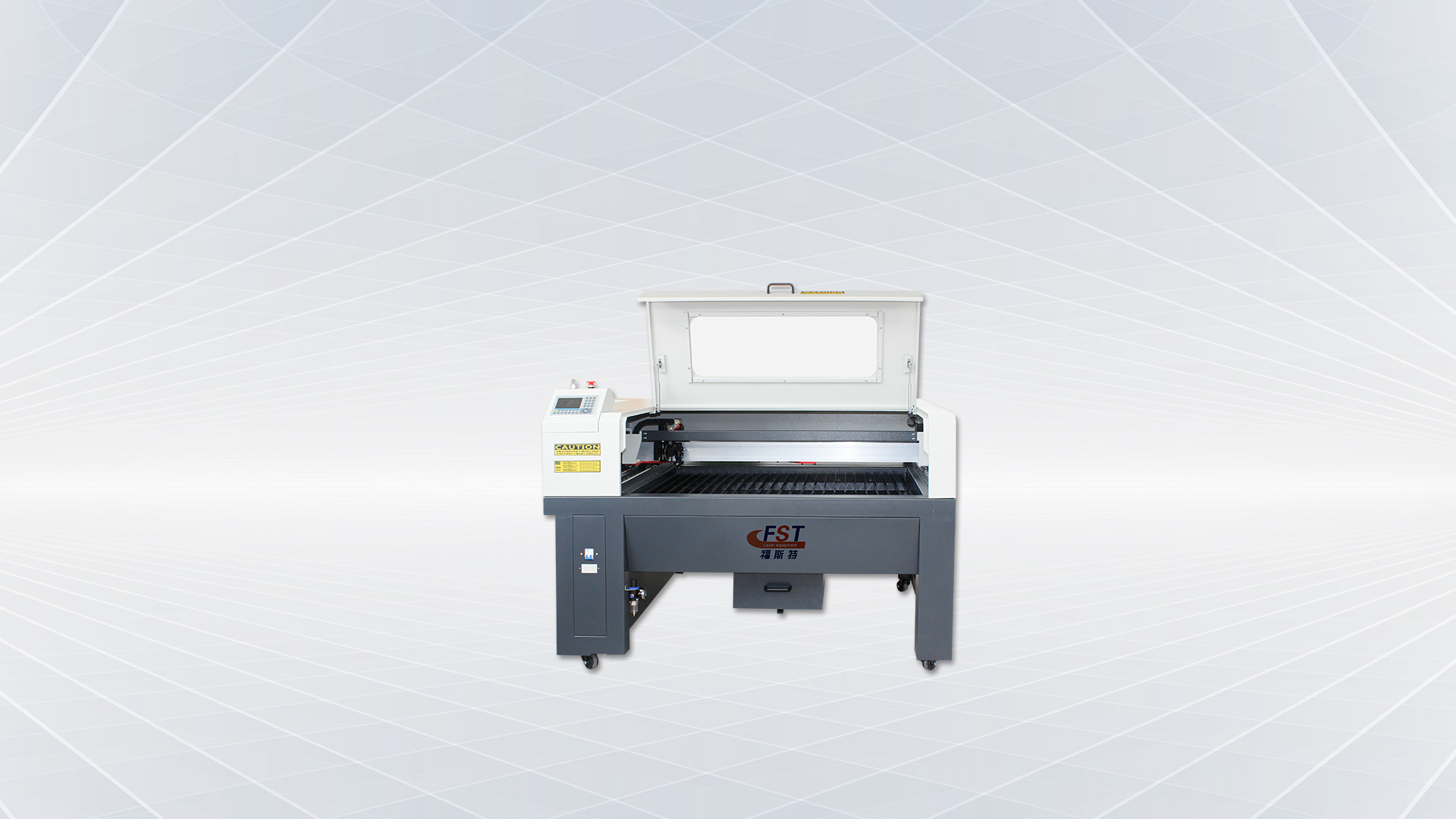

| Machine model | co2 laser cutting machine with ball screw |
| Laser power | 150w/180w/220w/300w |
| Beam quality | M2≤1.1 |
| Table size | 1250mm×900mm |
| Max load-bearing of platform | 200KG |
| Max cutting thickness | Acrylic:25mm |
| Repetition accuracy | ±0.005 |
| Length X-axis | 1250mm |
| Length Y-axis | 900mm |
| Length Z-axis | 30mm |
| Working voltage | 110V/220V 50-60HZ |
| Machine size | 1750mm×1600mm×1200mm (L×W×H) |
| Net weight | 450kg |
