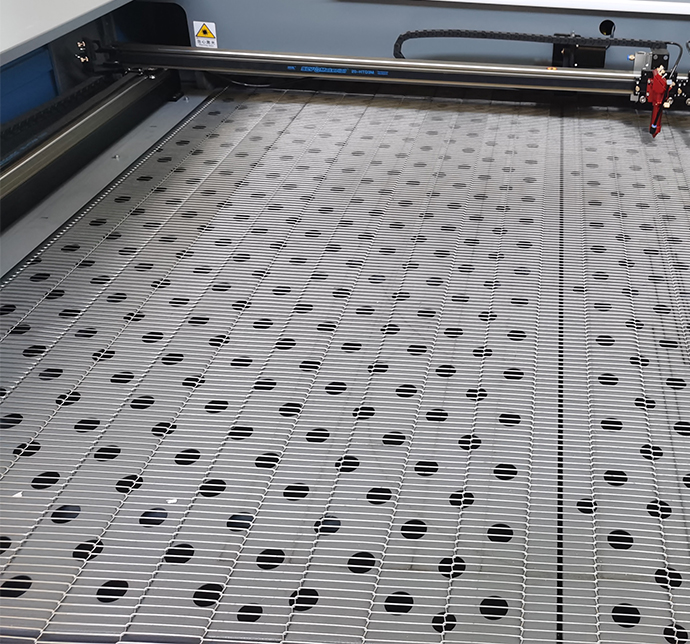

The laser cutter with auto feeding system fixed with aselective rolling automatic feeding system, which make the whole cloth processing steps finish in one time.
world famous brand: Ruida control panel
Software and supported software plug ins: LightBurn, AutoCAD, CorelDRAW
Laser head: Industrial grade laser head, the default is single head, can be double headed or multi headed.
Working platform: Automatic feeding platform, labor-saving, intelligent control
Feeding System: Can be upgraded to electric automatic feeding system
High precision guide rail: high speed slide rail, low resistance
Foster laser CO2 Laser Engraving Machine with different working area,laser power or working table, which application is engraving and cutting on acrylic, wood, fabric, cloth, leather, rubber plate, PVC, paper and other kinds of non metal materials.1610 laser cutting machine are widely used in advertisement,decoration, arts and crafts, electronic and electric appliances, garment industry fabric leather cut and other industries.
Long life, stable power. Install of reinforcement settings, the laser tube is not easy to collide and cause damage when moving the machine.(EFR, RECI, CDWG, YONGLI, JOY. Optional)
Standard RDWorksV8 software: It support 15 different languages, include: Chinese, English, Japanese,French, German,Portuguese, Polish,Spanish, Russian, Korean, Vietnamese, Indonesian, Italian, Turkrish,Arabic. It can compatible with many other software, like Coreldraw, Photoshop, AutoCAD, TAJIMA,etc You can use these software to make designs, then import to Rdworks to cut or engrave.
Interface: USB2.0 interface support connect to computer by USB cable, it also support offline work.
Adopt advanced laser engraving and cutting control system : Ruida RDC6442 / 6445 control system, the control pannal support different language include Chinese, English, French, Pyccko, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian.

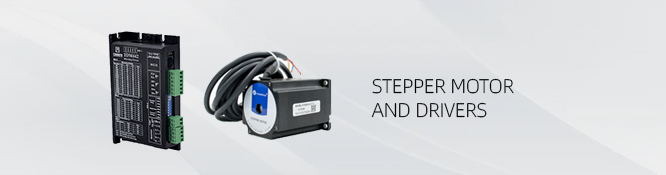

Adopt chinese Top Brand "Leadshine" step motor and driving system numeral timing simulation quantum control laser power. Little error, repetition high precision.
Ruida Controller system, support online/offline working, English language system, adjustable cutting speed and power.
High precision guide rail, with low resistance, just for auto feeding laser cutting machine.
PU:
Auto feeding laser cutting engraving machine for PU materials engraving.
Fabric:
Auto feeding laser cutting engraving machine for fabric clothing embroidery.
Leather:
Auto feeding laser cutting engraving machine for laser engraving.
| Model | Auto Feeding Laser Cutting Machine |
| Laser type | Co2 laser tube |
| Laser power | 80W/100W/130W/150W/160W/180W/300W(optional) |
| Working area | 1600x1000mm |
| Engraving speed | 0-800mm/s |
| Cutting speed | 0-400mm/s |
| Repeating precision | ±0.05mm |
| Controlling software | Ruida, Coreldraw, AUTOCAD |
| Cooling mode | Water cooling and protection system |
| Working voltage | AC 220V / 110V ±10% |
| Supported format | PLT,DXF,AI,DWG,CDR,BMP,JPG,PNG,etc |

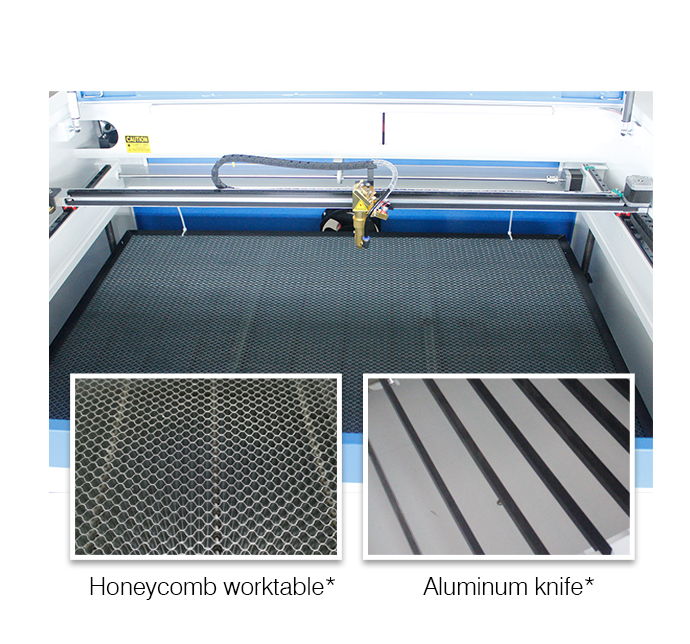

| Working table | Stainless steel net +Auto-feeding working table |
