You can choose one or two. It depends on the needs of the customer.
Aluminum knife or honeycomb table.
Two kinds of of tablesare available for different material.

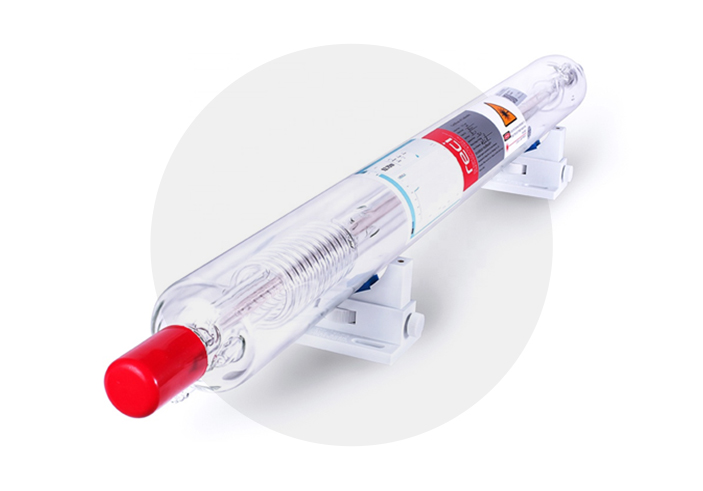

Long life, stable power. Install of reinforcement settings, the laser tube is not easy to collide and cause damage when moving the machine.(EFR, RECI, CDWG, YONGLI, JOY. Optional)
Adopt advanced laser engraving and cutting control system : Ruida RDC6442 / 6445 control system, the control pannal support different language include Chinese, English, French, Pyccko, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian.

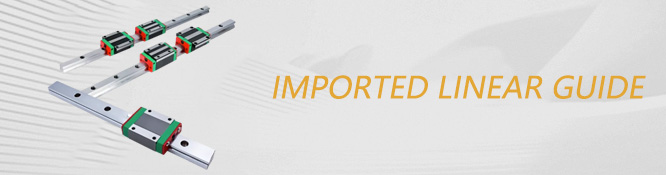

Tiwan Hiwin Linear square guide rails, higher precision.

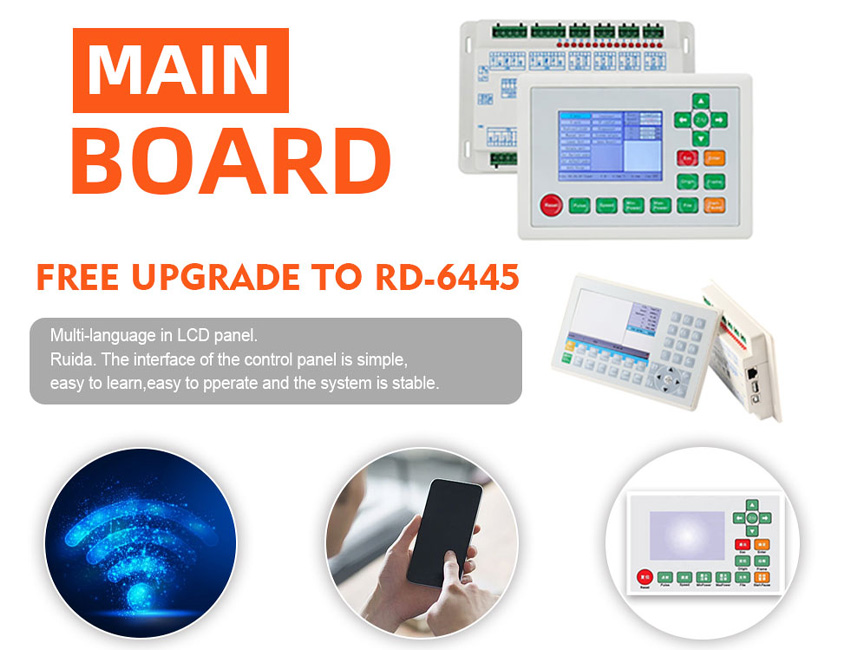

Ruida Controller system, support online/offline working, English language system, adjustable cutting speed and power.
Open style, the front and back of the machine is open which is possible for longer material, break through the limit of the workpiece length.
Arts and crafts, advertising, decoration, wood working, leather manufacturing, packaging, printing, mould making, furniture, clothing andbrand making etc. Applicable materials: Acrylic, leather, wood, rubber, double-color board, MDF, plywood, bamboo, paper, cardboard, marble, granite, stone, glass, fabric, textile, coated metal, painted metal, anodised aluminum etc.
Model | FST-1390 |
Worktable | Honeycomb / Aluminum knife |
Eneraving area | 1300*900mm |
Laser Power | 60W/80W/100W/130W/150W/300W |
Engraving Speed | 500mm/s Max |
Engraving Depth | 5mm |
Cutting Speed | 60mm/s |
Cutting Depth (Acrylic) | 0-15mm (acrylic) |

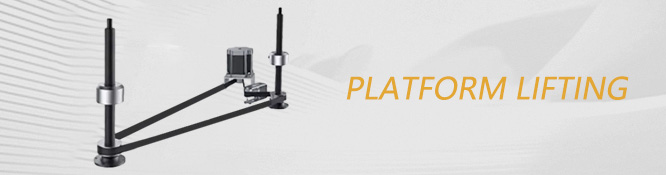

Up and down work table |
Yes |
Minimum Shaping Character | 1 X 1mm |
Resolution Ratio | 0.0254mm (1000dpi) |
Power Supply | 220V(or110V)+/-10% 50Hz |
Resetting Positioning | Accuracy less than or equal to 0.01mm |
Water protecting sensor and alarm | Yes |
Operating Temperature | 0-45℃ |
Operating Humidity | 35-70℃/span> |
Graphic Format Supported | PLT/DXF/BMP/JPG/GIF/PGN/TIF |
Operation System | Windows XP/7/10 |
Software | Ruida |
Control Configuration | DSP |
Water Cooling(Yes/No) | Yes |
Laser Tube | Sealed CO2 glass laser tube |
