New lifting platform, Brand laser tube, Upgrade the tri-body design, Water portection switch, Muti-document function.
High precision retractable laser head, easy to adjust focal length, equipped with red light positioning system, accurate positioning, reduce material loss. Auto-blowing to protect laser head.
Long life, stable power. Install of reinforcement settings, the laser tube is not easy to collide and cause damage when moving the machine.(EFR, RECI, CDWG, YONGLI, JOY. Optional)
Adopt advanced laser engraving and cutting control system : Ruida RDC6442 / 6445 control system, the control pannal support different language include Chinese, English, French, Pyccko, Portuguese, Turkish, German, Spanish, Vietnamese, Korean, Italian.
Tiwan Hiwin Linear square guide rails, higher precision.
Ruida Controller system, support online/offline working, English language system, adjustable cutting speed and power.
Open style, the front and back of the machine is open which is possible for longer material, break through the limit of the workpiece length.
Arts and crafts, advertising, decoration, wood working, leather manufacturing, packaging, printing, mould making, furniture, clothing andbrand making etc. Applicable materials: Acrylic, leather, wood, rubber, double-color board, MDF, plywood, bamboo, paper, cardboard, marble, granite, stone, glass, fabric, textile, coated metal, painted metal, anodised aluminum etc.

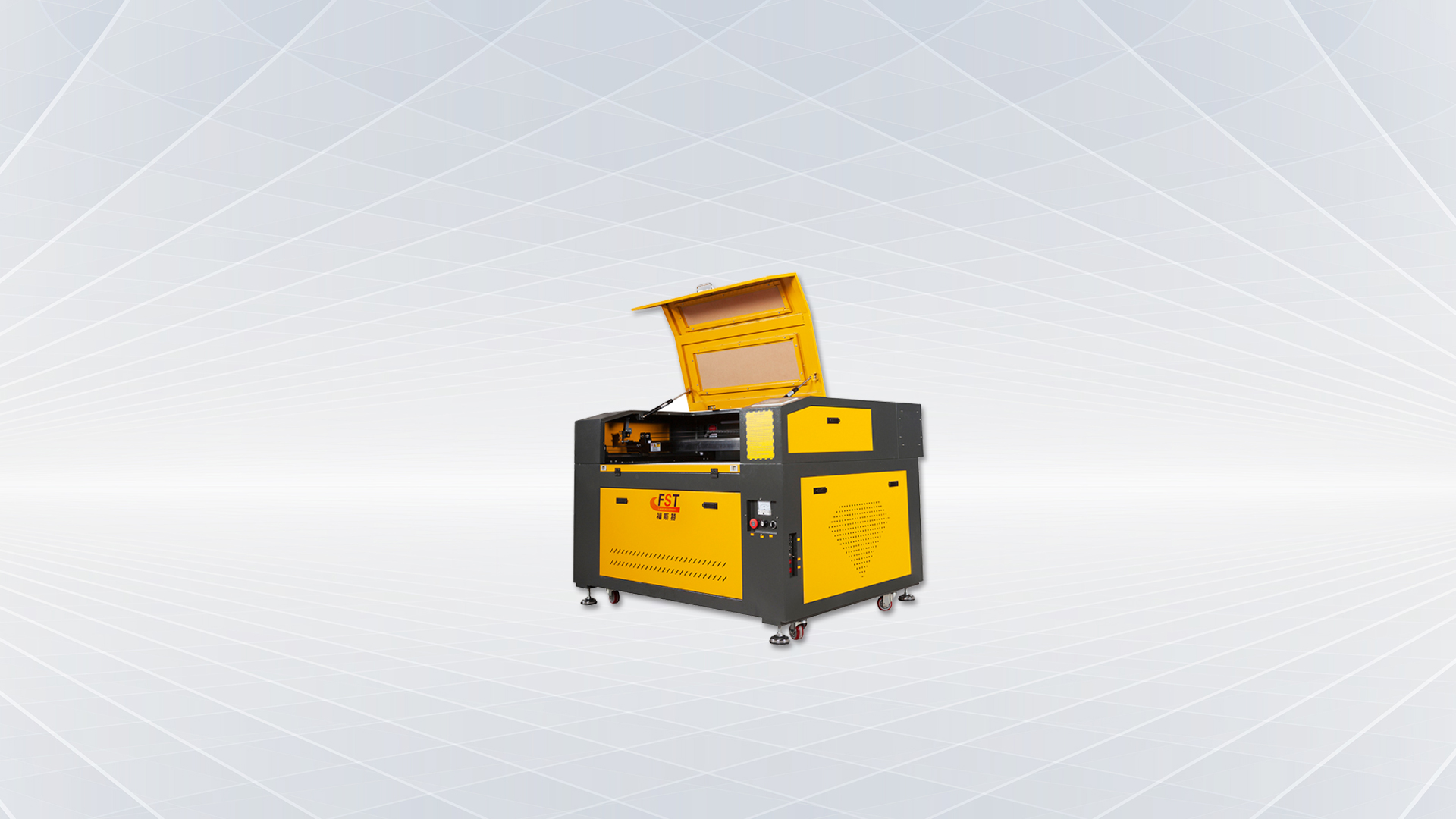

| Model | FST-9060 |
| Worktable | Honeycomb / Aluminum knife |
| Eneraving area | 600*900mm |
| Laser Power | 60W/80W/100W |
| Cutting Depth (Acrylic) | 0-15mm (acrylic) |
| Up and down work table | 300mm |
| Minimum Shaping Character | 1 X 1mm |
| Power Supply | 220V(or110V)+/-10% 50Hz |
| Water protecting sensor and alarm | Yes |
| Operating Temperature | 0-45℃ |
| Graphic Format Supported | PLT/DXF/BMP/JPG/GIF/PGN/TIF |
| Operation System | Windows XP/7/10 |
| Software | Ruida |
| Laser Tube | Sealed CO2 glass laser tube |
